RUSTON RK 270 SPARES MISCELLANEOUS LIST

  • RUSTON RK 270 SPARES MISCELLANEOUS LIST
  • RUSTON RK 270 SPARES MISCELLANEOUS LIST
  • RUSTON RK 270 SPARES MISCELLANEOUS LIST
  • RUSTON RK 270 SPARES MISCELLANEOUS LIST

FOB Price (USD): Negotiable / Unit

Quantity: 150 | views: 1356 HUGE LIST OF BRAND NEW INTERNALS FOR THE RUSTON RK 270 TYPE ENGINE
ORIGINAL GENUINE PARTS THERE ARE MORE THAN LISTED HERE

SPECIAL OFFER FOR PACKAGE DEAL

There are 391 vessels in the world with these engines
And approximately 1000 engines in these vessels.
Some vessels have four of these engines propelling them, others have two others have three or just one.
RK270 are used in high-speed ferries and fast craft applications.
PARTS ARE COMPATIBLE WITH: 6 cylinder versions, 8 cylinder versions, 12, 16 and and 20 cylinder versions. Check with us for compatibility.
info@diesel-cat.com

Also available: 38 lightly used connecting rods check with us for your version.

1 RUSTON RK 270 Rocker Arm Bush 11P4351090/7 PCS. 76
 2 RUSTON RK 270 Flexible Elbow 80.410.01240.200 PCS. 4
 3 RUSTON RK 270 Fuel Pump Tappet 80.458.01600.302 PCS. 2
 4 RUSTON RK 270 Rocker Lever for Rocker Arm 80.335.01179.803 PCS. 2
 5 RUSTON RK 270 Bush 80.435.01142.402 PCS. 16
 6 RUSTON RK 270 Capscrew 80.335.01179.402 PCS. 32
 7 RUSTON RK 270 Spring 80.318.01117.106 PCS. 32
 8 RUSTON RK 270 Roller Pin 80.435.01141.307 PCS. 8
 9 RUSTON RK 270 Sailing Ring 80.409.01101.401 1 set
10 RUSTON RK 270 Roller Assy 80.358.01897.400 PCS.8
 11 RUSTON RK 270 Con.Rod. Bush small ends 80.317.01446.201 PCS.11
 12 RUSTON RK 270 Con.Rod Bush small ends 80.317.01393.201 PCS.11
 13 RUSTON RK 270 Plunger Spring 80.358.01777.201 PCS.30
 14 RUSTON RK 270 Inlet Valve Seat 11/P416/1159/2 . PCS.16 0.20'' O/S
 15 RUSTON RK 270 Exhaust Valve Seat 80.316.01402.213 PCS.37 45o,D95mm, Cooled type
 16 RUSTON RK 270 Exhaust Valve Seat 34.049.87542  NIL/SOLD 45 D90 MM 17 RUSTON RK 270 Inlet Valve Seat 80.316.01505.202 PCS.7 45o, D90mm
 18 RUSTON RK 270 Thrust Plate 80.305.01497.400 PCS.19
 19 RUSTON RK 270 Seat for Housing 11/P400/5128/102 PCS.6
 20 RUSTON RK 270 Inlet Valve Seat 80.316.01402.204 PCS.11
 21 RUSTON RK 270 Sleeve 11/P400/5128/102 PCS.6
 22 RUSTON RK 270 Inner & Outer Valve Spring 80.317.01105.301 & 80.317.01104.301 9 set
 23 RUSTON RK 270 Bridge Piece 80.535.01235.803 PCS.7
 24 RUSTON RK 270 Nut ( for Con.Rob Bolt ) 80.327.01310.405 PCS.17
 25 RUSTON RK 270 Lower Valve Spring Cage 80.317.01107.201 PCS.10
 26 RUSTON RK 270 Rocker Pin ( Rocker Arm ) 80.335.01235.303 PCS.13
 27 RUSTON RK 270 Transfer Block ( Fuel Injector ) 80.318.01124.106 PCS.16
 28 RUSTON RK 270 Thermostat 74 o C     PCS.10
 29 RUSTON RK 270 Thermostat 76,5 o C    PCS. 4
 30 RUSTON RK 270 Thermostat 79,5 o C     PCS.4
 31 RUSTON RK 270 Thermostat 135 o     PCS.1
 32 RUSTON RK 270 Thermostat used 74 o C    PCS. 1
 33 RUSTON RK 270 Tappet Guide ( Valve ) 80.435.01141.306 PCS.9
 34 RUSTON RK 270 Tappet Guide ( Fuel ) 80.358.01919.803 PCS.3
 35 RUSTON RK 270 Valve Guide ( 173 mm ) 80.316.01379.202 PCS.114
 36 RUSTON RK 270 Valve Guide ( 167 mm ) 80.316.01379.202 PCS.30
 37 RUSTON RK 270 Valve Guide ( 178 mm )             with 2 o-ring grooves 80.316.01379.202 PCS.12
 38 RUSTON RK 270 Air Starter part ( Liner )     PCS.2
 39 RUSTON RK 270 Upper Valve Spring Cage 80.317.01106.201 PCS.14

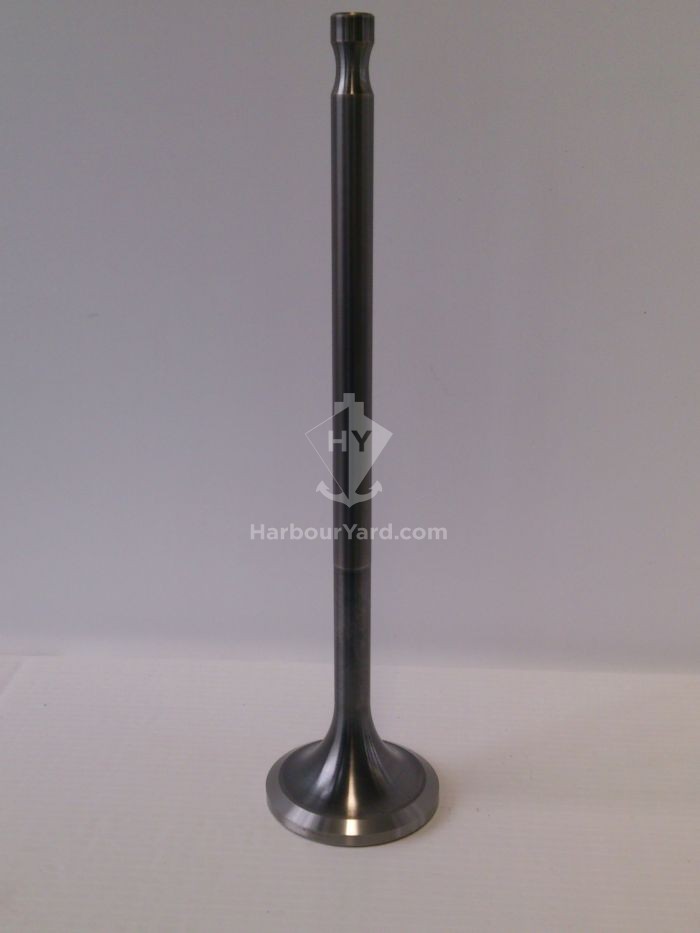

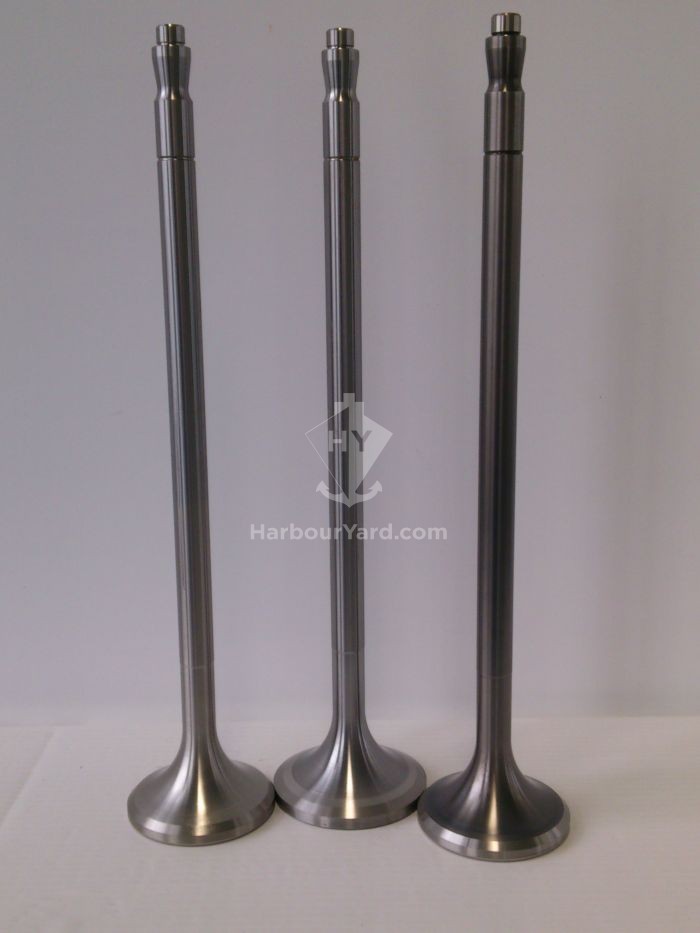

 40 RUSTON RK 270 Exhaust Valve 80.317.01114.102 PCS.27
 41 RUSTON RK 270 Exhaust Valve 80.317.01118.101 PCS.8
 42 RUSTON RK 270 Inlet Valve 80.317.01102-101 PCS. 9
 43 RUSTON RK 270 Inlet Valve 80.317.01112.101 PCS.17
 44 RUSTON RK 270 Con Rod Bolt Long 80.321.01329.304 PCS.16
 45 RUSTON RK 270 Con Rod Bolt Short 80.327.01379.301 PCS.17
 46 RUSTON RK 270 Gudgeon Pin 80.322.01286.300 PCS.8
 47 RUSTON RK 270 Piston ( set ) 80.322.01419.000 PCS.5
 48 RUSTON RK 270 Cutting ( Fire ) Ring 80.309.01135.203 PCS.14
 49 RUSTON RK 270 Roller for Valve Tappet Guide    PCS.6
 50 RUSTON RK 270 Spring Plate lower                       ( Fuel Injector Pump ) 80.358.01932.032 PCS.19
 51 RUSTON RK 270 Tappet Assy 80.335.01179.802 PCS.2
 52 RUSTON RK 270 Clamp Ring 86.521.01422.141 PCS.42
 53 RUSTON RK 270 Bearing Ass 80.327.01427.201 PCS.14
 54 RUSTON RK 270 Bearing Ass ( Reconditioned) 80.327.01427.201 PCS.1
 55 RUSTON RK 270 Bearing Narrow Top 80.305.01470.302 PCS.18
 56 RUSTON RK 270 Main Bearing Bottom 80.305.01482.301 PCS.17
 57 RUSTON RK 270 Main Bearing Bottom ( Recon) 80.305.01482.301 PCS.2
 58 RUSTON RK 270 Bearing Ass 80.327.01427.202 PCS.11
 59 RUSTON RK 270 Bearing 80.305.01417.318 PCS.3
 60 RUSTON RK 270 Bearing 80.305.01417.317 PCS.3
 61 RUSTON RK 270 Main Bearing Wide 80.305.01470.303 PCS.19
 62 RUSTON RK 270 Main Bearing ( 0.020 ) 80.305.01512.301 PCS.3
 63 RUSTON RK 270 Main Bearing ( 0.020 ) 80.305.01513.301 PCS.3
 64 RUSTON RK 270 Bearing ( Wide ) 80.305.01538.201 PCS.2
 65 RUSTON RK 270 Bearing 80.305.01539.201 PCS.5
 66 RUSTON RK 270 Bearing 80.305.01539.202 PCS.5
 67 RUSTON RK 270 Bearing 80.305.01540.201 PCS.1
 68 RUSTON RK 270 Bearing 80.305.01540.202 PCS.1
 69 RUSTON RK 270 Split Collet( Safety latches) 80.316.01379.701 PCS.27
 70 RUSTON RK 270 Compression Ring Set             ( Comp.Ring 1st,2nd & 3rd & Oil Ring ) Comp.Ring 1st p.n.80.322.01297.301 Compr.Ring 2nd p.n.80.322.1297.302 Comp.Ring 3rd p.n80.322.01297.302 Oil Ring 80.322.01404.200 PCS.8
 71 RUSTON RK 270 Compression Ring 1st Chromium 80.322.01297.301 PCS.23
 72 RUSTON RK 270 Compression Ring 2nd & 3rd 80.322.01297.302 PCS.76
 73 RUSTON RK 270 Fuel Booster Transfer Pump 80.358.01977.000 PCS.1
 74 RUSTON RK 270 Push Rod 80.335.01237.300 PCS.3
 75 RUSTON RK 270 Thermal Cover                   ( Exhaust System ) 80.426.03397.401 PCS.1
 76 RUSTON RK 270 Fuel Pump Element Assembly 80.358.01932.020 PCS.1
 77 RUSTON RK 270 Bridge Piece Guide 80.316.01379.311 PCS.8
 78 RUSTON RK 270 Exhaust Joint 80.326.04490.304 PCS.105
 79 RUSTON RK 270 Exhaust Joint for Cylinder Head 80.326.04621.301 PCS.55
 80 RUSTON RK 270 Washer for Cylinder Head 80.316.01339.304 PCS.84
 81 RUSTON RK 270 Washer for Main Bearing 80.316.01339.304 PCS.26
 82 RUSTON RK 270 Tapped Guide for Fuel Pump Drive 80.358.01919.801 PCS.2
 83 RUSTON RK 270 Cylinder Head Stud 80.302.02283.204 PCS.1
 84 RUSTON RK 270 Exhaust Spring Flange 43ACNH950531 PCS.2
 85 RUSTON RK 270 Inner Valve Spring 80.317.01105.301 PCS.1
 86 RUSTON RK 270 Outer Valve Spring 80.317.01104.301 PCS.1
 87 RUSTON RK 270 Nut ( for Main Bearing ) 80.406.01569.305 PCS.4
 88 RUSTON RK 270 Washer for Main Bearing 80.316.01359.304 PCS.18
 89 RUSTON RK 270 Spring Relief Valve 80.407.01419.400 PCS.1
 90 RUSTON RK 270 Coil for Solenoid Valve 220V 018F6282 PCS.1
 91 RUSTON RK 270 Liner Joint 11/P40921073 PCS.8
 92 RUSTON RK 270 Sealing Ring ( Liner ) 80.409.01101.401 PCS.10
 93 RUSTON RK 270 Control Sleeve 80.458.01690.209 1 Used
 94 RUSTON RK 270 Solenoid Valve 3way                       ( Air Compressor ) 018F6282 PCS.2
 95 RUSTON RK 270 Flanged Cam. Element 80.352.01664.001PCS. 3
 96 RUSTON RK 270 Impeller for G/S Pump PCS.1           ( Fire Pump ) D240 3PI3042 B.A. PCS.2
 97 RUSTON RK 270 Impeller for G/S Pump PCS.2           ( Fire Pump ) D220 3P64004 B.A. PCS.1
 98 RUSTON RK 270 Liner Bronze                         ( ID151mm OD172mm)    PCS.1
 99 RUSTON RK 270 Ring with Screw                     ( ID185mm OD206mm) 030656 PCS.2
 100 RUSTON RK 270 Sea Water Pump 80.374.01310.000 PCS.2 New
 101 RUSTON RK 270 Fuel Injector 80.318.01125.C01 PCS.18 New
 102 RUSTON RK 270 Piston SET 80.322.01419.001  PCS. 5 New
 103 RUSTON RK 270 Cylinder Head Cover 80.316.01381.C01 PCS.3 New
 104 RUSTON RK 270 Cylinder Head 80.316.01438.C03 PCS.5 SOLD
 105 RUSTON RK 270 Piston Skirt    PCS.1 New
106 CONNECTING RODS PCS. 38 LIGHTLY USED

  • MAKE: RUSTON
  • PART NAME: ALMOST ALL MAJOR INTERNAL
  • MODEL TYPE: RK 270
  • CONDITION: NEW
  • ORIGINAL (OEM)
  • WEIGHT: UPON REQUEST
  • DELIVERY TIME: IMMEDIATE
  • DELIVERY TIME: UPON CONFIRMATION
  • PACKAGING: INDUSTRY SPECIFICATION, FUMIGATION APPROVED CRATE
  • WEIGHT: UPON REQUEST
